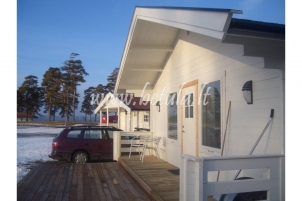

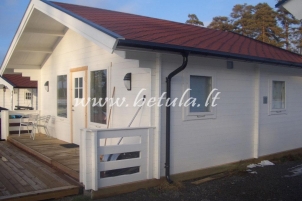

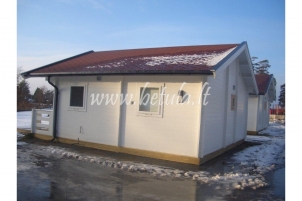

• Wooden house CACTUS

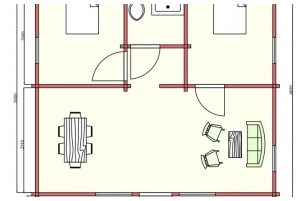

    Timber house is made of 45, 60, 90, 120 mm thick walls. Dimensions are 6500x5600mm, Open terrace. Three rooms inside and bathroom. Please find the plan here.



    Roof construction:
    Roof boards 22x86mm
    Rafters 60x160mm
    Floor construction:
    Beam 100x150mm
    Underfloor beams 60x100mm
    Floor boards 26x100mm
    Terrace construction:
    Beams 100x150mm
    Terrace floor 45x130mm
    Wooden windows with glass packet, wooden door:
    Single window 3 units
    Double window 2 units
    Inside door 3 units
    Front door 1 unit


    Height: min-2500mm, max- 3800mm
    Additional parts for assembling:
    All kind of screws, nails, metal strips, linnen fiber for walls. Assembling instructions.


    Roof cover, rain water system, delivery, assembling according to additional request.



    Dydis 33m²
